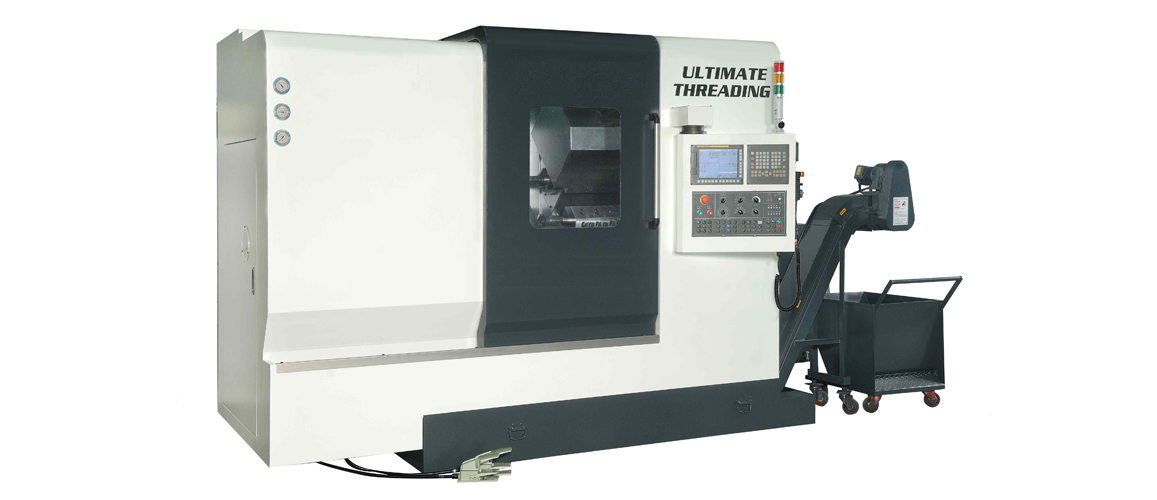

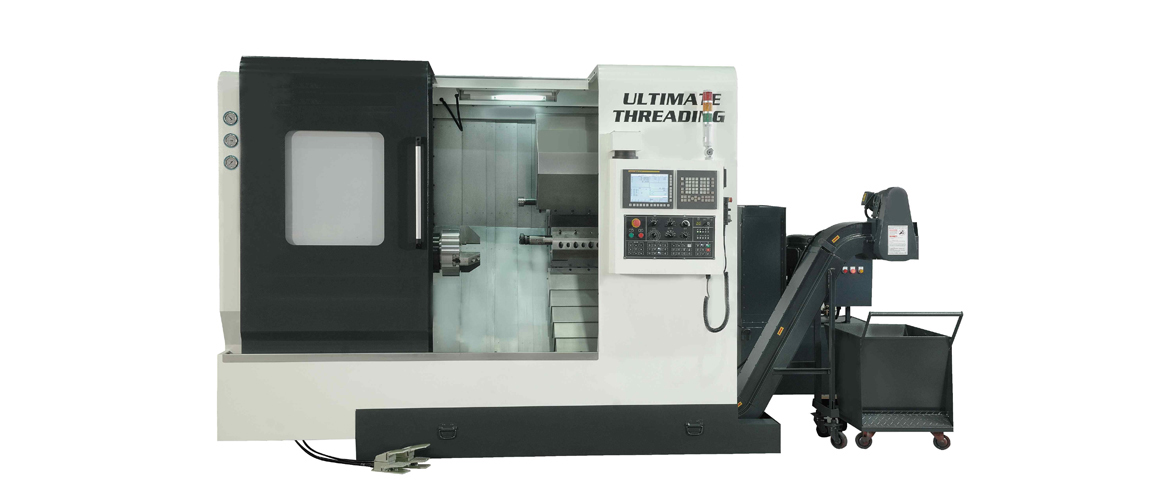

ATC-660X650 For oil pipe coupling, tubing coupling, drill pipe tool joints MENU Specification Photos Inquiry
ITEM MODEL ATC-660X650 Machining Capability Swing Over Bed 660mm Max turning diameter 300mm Main Spindle Spindle Nose A2-8 Spindle Bore 102mm (available for 12" hyd. chuck) Spindle Speed (rpm) 3000rpm Travel X axis 500mm Z axis 650mm Thrust X axis thrust force 3282kgf Z axis thrust force 4257kgf Feeds X axis rapid traverse 10M/min Z axis rapid traverse 10M/min Motors Main motor FANUC A18 Spindle motor 18.5~22kw X axis servo motor FANUC A22 servo motor 4.0kw, 22Nm, 3000rpm Z axis servo motor FANUC A30 servo motor 7.0kw, 30Nm, 3000rpm Lubrication pump 30W Coolant pump 70 bar (opt) Hydraulic tank pump 5hp (3.7kw) Milling Spindle Taper NT50 Max speed 3300rpm Motor FANUC A12 spindle motor 11~15KW (opt) Tank Capacity Hydraulic Tank (Optional) 70L Lubrication pump 2L Coolant tank 200L Ball Screw X axis diameter 40mm / pitch 10 Z axis diameter 40mm / pitch 10 Tailstock Quill Diameter --- Quill Travel --- Quill Taper --- Measurement Length 3000mm Height 2300mm Width 2300mm Net weight (approx.)(kg) 5500kg * Above specifications are subject to change without notice. Special requirement please contact with us.
